TIMER-DX0BT
24x7 LCD Time Switch Bluetooth Programmable Timers
DIN rail-mounted 240VAC time switch with Bluetooth app control, backlit LCD, and astronomical scheduling.
Overview

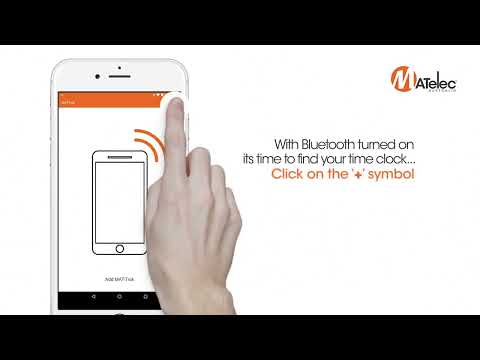

- IOS & Android app compatibility via Bluetooth
- Backlit LCD for optimised user interface
- Pin Protection of Parameters
- Daylight savings/wintertime automatic update settings
- Astronomical coordinates setting for sunrise/sunset times
- One (BT10) or Two (BT20) programmable relay outputs for additional control functionality
- Lithium backup battery to retain custom schedules in the event of a power outage
- Din rail mount
- 5-year Warranty
Product Details
- Mounting: Din Rail
- Weatherproof rating: IP20
- Display: LCD with backlighting (Active with AC power)
- Supply voltage options: 240Vac
- Operating frequency: 50/60Hz
- Power consumption:
- TIMER-D10BT: 1W (3.5 VA)
- TIMER-D20BT: 1.5W (5.5 VA)
- Load rating: 16A Resistive, 10A Inductive
- Relay outputs:
- TIMER-D10BT: 1 monostable change-over relay with maximum switchable load of 16A / 250V
- TIMER-D20BT: 2 monostable change-over relays with maximum switchable load of 16A / 250V
- Operating temperature: -20 °C to +50°C
- Switching functions: Off, Auto, On
- Battery life: Lithium backup battery: 3V, CR2032 type (replaceable)
- Storage programs:
- TIMER-D10BT: 120 events
- TIMER-D20BT: 120 events (over the 2 channels)
- Dimensions: 87mm (H) x 35mm (W) x 65mm (D) 2 Modules
SKU Details
| SKU | Description | MOQ | Units | CTN |
| TIMER-D10BT | 240Vac 24x7 LCD Time Switch with 1 Channel R/O Bluetooth Programmable | 1 | Each | 200 |
| TIMER-D20BT | 240Vac 24x7 LCD Time Switch with 2 Channel R/O Bluetooth Programmable | 1 | Each | 200 |
