SC2-XXXXXXX
Double Cable Connectors
240V brass connector with flame retardant PVC insulator, tapered entry, and deep slotted screws. Available in 6–35mm².
Overview
- Tapered cable entry
- Deep flat/slotted screw heads, enabling tight positive connection
- Soft, pliable material
- High-quality tubs
Product Details
- Materials: Insulator - Flame retardant PVC, Connector - Brass
- Voltage: 240V

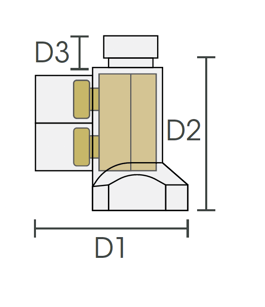

| Dimensions | 2 x 6mm² Double | 2 x 16mm² Double | 2 x 35mm² Double |
|---|---|---|---|
| D1 (mm) | 22 | 38 | 45 |
| D2 (mm) | 27.2 | 44.5 | 58.5 |
| D3 (mm) | 4.8 | 8 | 11.5 |
SKU Details
| SKU | Description | Amp Rating | MOQ | Units | CTN |
| SC2-2X6/50 | 2 x 6mm² Double Cable Connector - 50 Jar | 32 Amp | 1 | JAR | 18 |
| SC2-2X6/300 | 3 x 6mm² Double Cable Connector - 300 Jar | 32 Amp | 1 | JAR | 4 |
| SC2-3X6/50 | 3 x 6mm² Double Cable Connector - Each - 50 Jar | 40 Amp | 50 | JAR | 10 |
| SC2-2X16 | 2 x 16mm² Double Cable Connector - Each | 63 Amp | 20 | EACH | 360 |
| SC2-2X35 | 2 x 35mm² Double Cable Connector - Each | 80 Amp | 10 | EACH | 180 |
